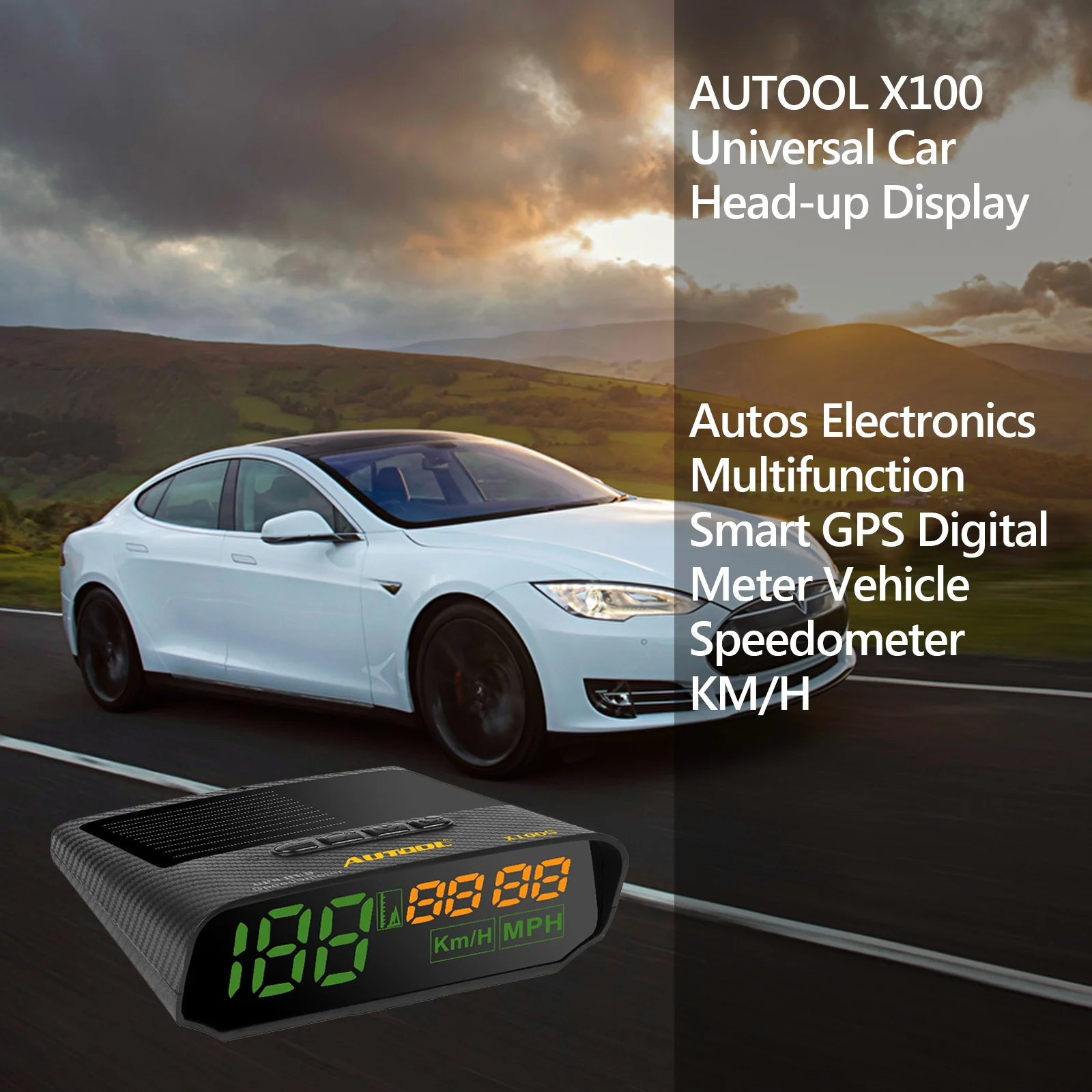

AUTOOL X100 Universal Car Head-up Display Autos Electronics Multifunction Smart GPS Digital Meter Vehicle Speedometer KM/H
X100 is a multi-function smart GPS digital meter, which displays speed, altitude, distance etc.
It is designed for all cars of 5V/12V, and easy to install.
It is charged by connecting OBDII port and USB port, receives GPS signal by satellites
which ensure accurate speed display.
At 120 MPH, if you looks down for one second to check the speedometer, you will drive blind for 33 miles.
X100 is designed for your family safety, and protects you from fatigue driving.
There are two version for this HUD.
X100S has solar power charge function, while X100 has no solar power charge function.
X100 receives GPS signal by satellites.
Please don’t worry, if it can’t receive data when you are in the underground parking, tunnel or
between the tall building, because GPS signal is disturbed.
When X100 displays altitude by GPS in the low altitude, the error is between 2-6km/h,
which is related to satellite signal; while in the high altitude, the error can be ignored.
b. Reset, switch of time zone
c. Unit of KM/H, MPH
d. Switch of altitude and time
e. Speed display
g. Altitude, time display
h. MPH display
i. KM/H display
k. Altitude indicator
l. Power indicator
m. Sensor hole for bright and dark mode
1. Power X100 on. The buzzer beeps, and the front LED displays.
2. When X100 is power on, the front LED displays speed – -. When satellite signal comes, speed displays 0,
it means 0 KM/H. Meanwhile, the blue altitude indicator is lit, and 4 lights in the right display altitude.
No satellite signal, it will display altitude in 0000 m, and speed – –
3. Press the key “d” and switch to time display. No satellite signal, it will display 00:00.
When it displays time, quick press “d”, time zone can be switched in global 24 time zones.
Each time you press, 1 hour ahead it will be. You can switch it to time zone you are in and
it will be saved automatically. You don’t need to switch again the next time you use it.
4. Press the key “d” to switch back to altitude display, altitude indicator will light.
5. Key “c” is for switch between Km/H and MPH.
6. The third key from the left is power switch. This product will power on automatically.
When connecting with power, it will power on automatically.
When there is no change for GPS signal, it will be power off in about 25 minutes.
After turning off the engine, and start the car again, the product will power on automatically.
7. X100 is designed with 3 types of circuit (5V/12V).
8. Speed unit of MPH, KM/H. Switch by “c”.
9. Over speed alarm: When the speed is over 120 km/h, the buzzer alarms in 5-10s.
When the speed is less than 120 km/h, the buzzer will not alarm.
10. 2 modes of brightness: day mode and night mode. The product will switch automatically.
12. The MAX display speed is 199 MPH/ KM/H.
12. When altitude is negative, it will display 0000.
13. The first time to use it, it will take 30-60 seconds to search satellite signal.
14. When the product is out of order or displays abnormal, please long press “b” to reset.
15. If you do not want to use it when driving, please press “a” to power it off.
1. The non-technical is not allowed to modify, dismantle or repair the product
2. Please do not scratch, bend, twist or stretch the cable, and keep the cable away from high temperature.
Please do not press heavily or dismantle the charger.
3. Please do not put the tiny sundries such as nail, needle in front of charging port to avoid being damaged..
4. Please do not leave the product in the unstable place, such as in the high, slant or shelf.
